Khoom Piav Qhia
Lub plug -} Thiab -} Ua si CDC hom, khoos phis tawj uas tsis tas yuav tsum muaj cov tsav tsheb ntxiv. Nws cov vagatile txuas xaiv suav nrog TTL232 thiab RS232 muab cov kev daws teeb meem hloov tau.
Cov Ntsiab Lus Tseem Ceeb:
High - Kev ua tau zoo scanning muaj peev xwm
Seamless kev koom ua ke ntawm USB interface
Kev Cog Lus Tsim thiab Yooj Yim Installation
Zoo ntseeg tau
Kev Thov Qhib Thoob
Nrog nws cov kev tsim kho cov khoom zoo thiab qib siab hloov kho cov thev naus laus zis, peb tus qauv muab cov kev daws teeb meem zoo rau cov neeg ua haujlwm sib koom ua lag luam
Daim ntawv thov
Lub USB Barcode 1D & 2D code scanner tau siv dav siv thoob cov kev lag luam sib txawv rau kev ua tau zoo thiab kev nyab xeeb. Hauv lub khw muag khoom muag muag, lawv tau ncig xyuas cov txheej txheem thiab cov khoom lag luam. Txhawm rau nkag mus tswj cov tshuab, kev pom kev ua kom sai qhabnias los ntawm daim npav ID lossis cov daim pib mobile. Hauv kev thauj mus los, lawv pab txhawb kev pib thiab cov neeg caij tsheb. Tsis tas li ntawd, qee yam kev twv txiaj cov tshuab ua Casinos sib xyaw ua ke thev naus laus zis rau kev nyab xeeb cov neeg ua yeeb yam thiab kev ua lag luam. Cov versatility ntawm barcode txhim kho kev ua haujlwm ua haujlwm, kev ruaj ntseg, thiab tus neeg siv yooj yim thoob plaws cov kev siv sib txawv no.
Tso cai
Pab Neeg Ua Haujlwm
Ntim thiab xa khoom
Cov FAQ
1.What yog qhov kev daws teeb meem siab tshaj plaws ntawm lub scanner?
Nws txhawb txoj kev daws teeb meem ntawm 1280 × 800 pixels nyob rau hauv tag nrho cov cai.
2.What interface yog txhawb rau kev sib txuas?
Lub scanner txhawb USB interface.
3.Which 2D barcode tawm tswv yim nws tuaj yeem nyeem?
Nws suav nrog PDF417, QR Code, Dataamatrix, thiab lwm tus lej 2D.
4.Koj puas muaj kev customized customization?
Kiag li! Ua tus kws tshaj lij kev tsim khoom thiab cov kev daws teeb meem tshwj xeeb hauv kev twv txiaj tshuab kho vajtse thiab software, peb muaj cov kev cai tsim qauv tsim qauv kom tau raws li koj cov kev cai tshwj xeeb.
5.Koj puas tau muab tom qab {{1} kev muag khoom?
Yog lawm, peb muaj lub siab rau tom qab - kev muag khoom pab txhawb pab pawg kom sai li cas cov teeb meem lossis cov lus nug koj yuav muaj.
6.What yog qhov ntev thiab qhov hnyav ntawm lub scanner?
Qhov ntev: 42 × 48.5 × 21 hli (l × w × h)
Qhov hnyav: 65g
|
Kev Ntsuam Xyuas Lub Sensor |
Cmos |
|
|
Cov Lus Qhia Tawm |
1280 * 800 (Puv Raug) |
|
|
Kev sib tshuam |
USB (HID, CDC) |
|
|
Nyeem Code System |
2D |
Microqr, PDF417, QR Code, Datamatrix, Aztex, Maxicode |
|
1D |
Code 128, ean -}} 13,}- 8, Code 39, UPC-A, UPC-E, UPCAR, Interleaved 2 ntawm 5, ITF-6, ITF-14, ISBN, code 93, UCC / EAN-128, GS1 DATABAR, MATRIX 2 ntawm 5, Code 11, Muaj 2 ntawm 5, Txheem 2of 5, Plessey, msi- plessey, thiab lwm yam |
|
|
Kev Nyeem Ntawv Yog* |
5mil |
|
|
Teeb |
Dawb LED |
|
|
Kev sib pauj kev hnov tau** |
Kiv |
360 degree |
|
Yuag |
± 50 degree |
|
|
Deflect |
± 50 degree |
|
|
Cim piv* |
Ntau dua los yog sib npaug rau 30% |
|
|
Lub kaum ntse ntse |
Tiaj lias |
49 degree |
|
Rov ntsug |
37 degree |
|
|
Ib puag ncig ib puag ncig |
Tus me 13 |
55 hli-230mm (13mil) |
|
Qr |
35 hli-170mm (15mil) |
|
|
Cov ntaub ntawv Matrix |
40 hli-115mm (20mil) |
|
|
PDF 417 |
40mm-110mm (6.67Mil) |
|
|
Qrcode (Wechat) |
40mm-410mm (32Mil) |
|
Neeg Kho Tshuab / Hluav Taws Xob Cov Hluav Taws Xob
|
Dimension (mm) |
42 x 48.5 x 21 ( L x W x H) |
|
|
Qho hnyav |
65g |
|
|
Kev qhia |
- |
|
|
Kev Siv Tam Sim No |
300mw |
|
|
Cov tswv yim ntxiv |
5VDC |
|
|
Niaj hnub |
Max tam sim no |
70ma @ 5V |
|
Raug tam sim no |
60MO ** 5V |
|
Ib puag ncig parameter
|
Kev khiav hauj lwm kub |
-10℃- +50 degree |
|
|
Cia kub |
-40 Degree - +60 degree |
|
|
Kev khiav hauj lwm vaum |
5% {- 95% (tsis -} condensing) |
|
|
Ambient lub teeb |
0 ~ 100,000 luce |
|
|
Yam ntxiv |
||
|

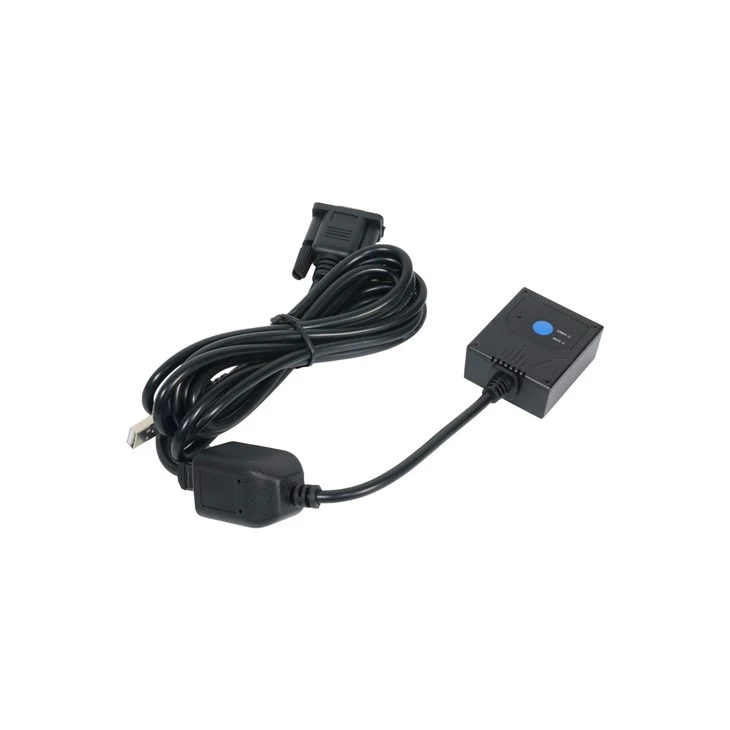

USB Cable |
USB Cable, nws yog siv los txuas cov cav nyeem ntawv rau cov ntaub ntawv tau txais tus tswv tsev |
|
