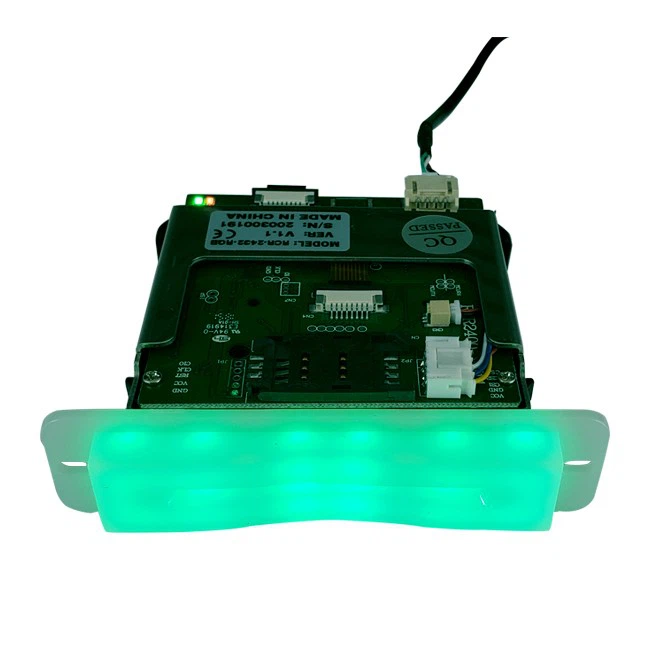

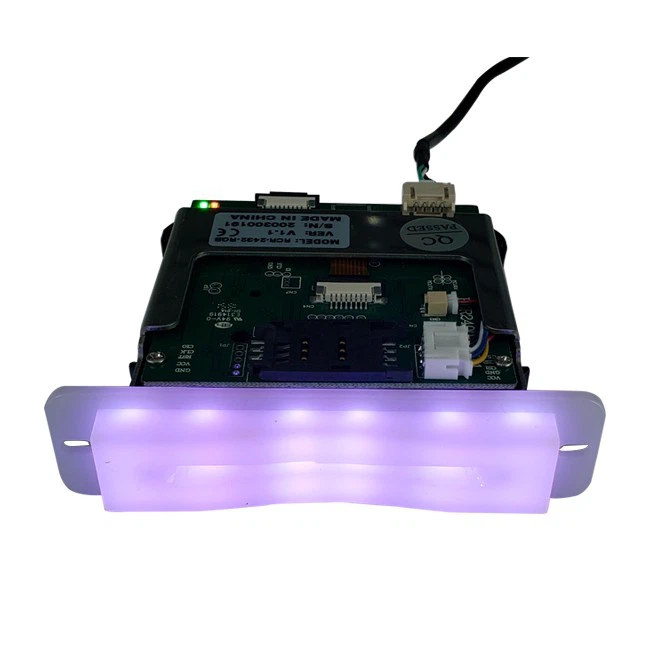

Phau ntawv Insertion Kiosk IC RF RGB Bezel Sib Nqus Daim Ntawv Nyeem Ntawv Sau
RF thiab IC hybrid daim npav nyeem ntawv yog ib qho khoom siv uas muaj peev xwm nyeem tau ob lub xov tooj cua zaus (RF) phaib thiab kev sib koom ua ke (IC) phaib. RF phaib feem ntau siv wireless RF thev naus laus zis rau kev sib txuas lus, xws li Zej Zog Kev Sib Txuas Lus (NFC), ua kom tsis muaj kev nyeem ntawv. Ntawm qhov tod tes, IC phaib siv cov cuab yeej chip los khaws cov ntaub ntawv thiab xav tau kev nyeem ntawv sib cuag.
Lub hybrid card nyeem ntawv sib txuas ob qho tib si ntawm daim npav nyeem ntawv thev naus laus zis, tso cai rau nws nyeem thiab ua cov ntawv teev lus uas txhawb nqa RF thiab IC kev ua haujlwm. Hom kev nyeem ntawv no feem ntau yog siv rau hauv ntau yam kev them nyiaj, kev tswj xyuas kev nkag, kev txheeb xyuas tus kheej, thiab lwm yam kev siv.
RF thiab IC hybrid daim npav nyeem ntawv tuaj yeem ua tiav kev sib cuag tsis sib cuag thiab nrawm los ntawm wireless RF thev naus laus zis, nrog rau nyeem cov chips ntawm daim npav sib cuag, muab kev yooj yim dua thiab kev sib raug zoo. Nws yog tus nyeem ntawv daim npav muaj zog uas feem ntau pom nyob rau hauv cov tsev txhab nyiaj, cov chaw lag luam, kev thauj mus los rau pej xeem, thiab lwm qhov chaw uas yuav tsum muaj peev xwm nyeem ntau hom ntawv.
1,Txheej txheem cej luam
RCR-2400 yog phau ntawv ntxig Hybird daim npav nyeem ntawv & sau ntawv uas nyeem thiab sau IC tiv tauj thiab daim npav tsis sib cuag .
Cov npe ua qauv raws li hauv qab no
|
Qauv NO. |
Daim npav hom |
Bezel |
Interface |
|
RCR-2 |
2. IB 3 :rfv |
0: Tsis muaj bezel |
0: RS232 |
|
|
4: IC ntxiv rau RF |
1 : kov |
|
|
|
|
2 :dub |
2: USB ib |
|
|
|
3: semi-pob tshab bezel ntxiv rau LED taw qhia |
|
Cov qauv kub muag: RCR-2330, RCR-2332, RCR-2410, RCR-2412 thiab lwm yam.
2. Feature:
1.Multi-function reader: Tus nyeem ntawv no txhawb kev nyeem ntawv thiab sau ntawv ua haujlwm rau IC phaib, RF phaib, thiab daim npav hlau nplaum sib nqus, ua rau nws muaj ntau yam khoom siv. Cov neeg siv tau yooj yim khaws cov ntaub ntawv los ntawm daim npav lossis sau cov ntaub ntawv rau lawv siv cov cuab yeej no.
2.Manual insertion design: Lub cuab yeej nta ib phau ntawv ntxig tsim, tso cai rau cov neeg siv yooj yim ntxig daim npav rau hauv tus nyeem ntawv lub qhov kom ua tiav kev nyeem ntawv lossis sau ntawv. Qhov kev tsim no yog tus neeg siv-phooj ywg thiab tshem tawm qhov xav tau rau cov kauj ruam ntxiv lossis kev ua haujlwm, ua kom yooj yim dua.
3.Rich interfaces thiab kev sib txuas lus muaj peev xwm: Cov cuab yeej nyeem ntawv muaj ntau yam kev sib txuas lus thiab kev sib txuas lus, ua rau nws txuas thiab sib txuas lus nrog lwm yam khoom siv lossis tshuab. Piv txwv li, nws tuaj yeem txuas nrog khoos phis tawj, POS systems, lossis vending machines los pab txhawb kev hloov ntaub ntawv lossis kev sib pauv ntaub ntawv.
4.High compatibility: Tus nyeem ntawv no tau sib xws nrog ntau hom ntawv, suav nrog IC phaib, RF phaib, thiab daim npav hlau nplaum. Nws tuaj yeem ua raws li cov npav sib txawv xws li daim npav hauv txhab nyiaj, daim npav ID, daim npav nkag, lossis daim npav thauj mus los rau pej xeem, ntsib ntau yam kev xav tau hauv cov xwm txheej sib txawv.
5.High kev ruaj ntseg: Tus nyeem ntawv siv cov cuab yeej kev ruaj ntseg siab heev thiab encryption algorithms los xyuas kom meej kev ruaj ntseg ntawm kev nyeem ntawv thiab sau ntawv. Nws tuaj yeem tiv thaiv daim npav kev dag lossis cov ntaub ntawv tub sab nyiag, tiv thaiv cov neeg siv cov ntaub ntawv kev nyab xeeb.
6.Sturdy thiab ruaj khov tsim: Cov cuab yeej tsim los nrog cov qauv tsim muaj zog thiab ruaj khov, muaj kev cuam tshuam tsis zoo thiab tiv thaiv kev sib kis. Nws tuaj yeem ua haujlwm hauv ib puag ncig hnyav thiab muaj lub neej ua haujlwm ntev nrog kev ua haujlwm ruaj khov.
Cov no yog qhov zoo ntawm phau ntawv Insertion Kiosk IC RF RGB Bezel Magnetic Card Reader Writer, ua rau nws muaj kev ntseeg siab thiab ntau yam nyeem ntawv.
Specification
|
Cov khoom |
Technical Parameter |
|
Voltage input |
DC 5.0± 5% V / USB fais fab mov |
|
Kev siv tam sim no |
Kev ua haujlwm tam sim no: <50 mA Peak tam sim no: <200 mA |
|
Interface |
RS {{0}} tus qauv serial chaw nres nkoj/USB 2.0 interface |
|
Daim npav Specification
|
Dav: 53 92-54.18 hli, Ntev: 85{4}}.90 hli Thickness: {{0}} 76-1mm (Ex-work standard 0.76mm)
|
|
Lub neej |
Micro Hloov: 500, 000times IC card down force device thiab IC hu rau: 300, 000 zaug |
|
Tus nqi yuam kev |
IC daim npav: nyeem / sau daim npav 1000 zaug, qhov yuam kev ＜1 zaug (tshwj tsis yog daim npav qias neeg ua rau yuam kev) |
|
MTBF |
＞100,000teev (tsuas yog cov khoom siv hluav taws xob) Nco tseg: 250 zaug / txhua hnub, 25 hnub / txhua hli, 300hours / txhua lub hlis. |
|
Environmental mob |
Kev ua haujlwm: -20 degree -50 degree , 0-90 feem pua RH (Non-condensing). Cia: -25 degree -80 degree , 0-95 feem pua RH (Non-condensing). |
|
Kev ntseeg tau |
Kev vibration: Ntau zaus: {{{0}}Hz; Ceev ceev: 2m / s2 (0.2g), Kev vibration kev taw qhia thiab lub sijhawm: mus rau X, Y, Z. txhua qhov kev taw qhia rau 15 feeb. Amplitude: 2 hli; tag nrho cov haujlwm tsis raug cuam tshuam tom qab vibration. B. Kev poob siab: 294m / s2 (30g), 11ms, ib zaug rau txhua qhov kev taw qhia X, Y, Z. Tag nrho cov haujlwm tsis raug cuam tshuam tom qab kev poob siab.(tsis muaj pob ntawm daim npav nyeem ntawv). |
|
Online download tau |
Txhawb ISP online rub tawm. |
|
Net nyhav |
Kwv yees li: 0.2 Kg (tsis muaj accessories) |
|
ROHS tus qauv |
Ua raws li ROHS tus qauv. |
Dimension（semi-pob tshab bezel）
Dimension（Hlau bezel）
