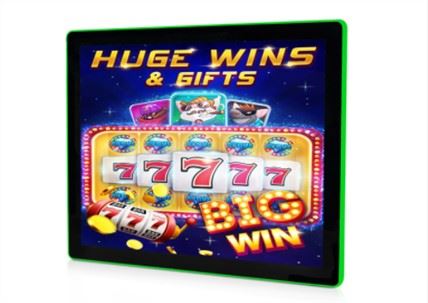

43 Nti LED PCAP Touchable Gaming Zaub
Cov cuab yeej yog ultra-high-txhais 4K LCD zaub nrog kev daws teeb meem ntawm 3840 x 2160 thiab thaj chaw ua haujlwm zoo ntawm 941.18x 529.42mm. Nws yog ib qho zaub nrog ib daim duab nyias. Tag nrho cov ncej siv LED Deco Slim series LEDs. Ciam teb, tuaj yeem ua tiav cov nyhuv halo.
Lub ci ci ntawm cov cuab yeej ntshiab LCD vaj huam sib luag yog 350cd / m2, thiab lub ci ci ntawm lub vijtsam nrog iav npog yog 320cd / m2. Ob qho kev qhia muaj lub sijhawm teb ntawm 14 milliseconds.
Cov Khoom Paub meej
|
Series |
LEDDeco Slim (LED Bezel) |
|
|
Hom zaub |
16: 9 Ratio, 43 nti TFT-LCD |
|
|
Chaw ua haujlwm |
941.18x529.42 (mm) |
|
|
Saib Dimensions (WxHxD) |
1031.2 x 639.4 x 68.2 hli |
|
|
Tswv yim daws teeb meem |
3840 x 2160 (UHD, 4K) |
|
|
Txhawb Xim |
1.07 B |
|
|
|
Pure LCD vaj huam sib luag |
350cd / m2 |
|
Brightness (Tib.) |
Nrog Cover iav |
320cd / m2 |
|
Lub Sijhawm Teb (Typ.) |
14ms ib |
|
|
Saib lub kaum sab xis (Typ.atCR＞10)) |
Kab rov tav (sab laug / sab xis) |
89 degree / 89 degree |
|
|
Vertical (up / down) |
89 degree / 89 degree |
|
Contrast Ratio (Tib.) |
1300:01 |
|
|
Video tswv yim/Interface |
HDMI / DP |
|
|
Ntau zaus (H/V) |
15-80KHz / 55-75Hz |
|
|
|
|
|
|
|
Hom: Internal Display voltage: DC24V |
|
|
Fais fab mov |
Input(kab) voltage:AC100-240V,50-60Hz |
|
|
|
|
|
|
Ib puag ncig |
Kev khiav hauj lwm Temp. |
0-50 degree |
|
|
Ua haujlwm RH |
10%-90% |
|
|
Cia Temp. |
-20-60 degree |
|
|
Cia RH |
5%-90% |
|
MTBF |
Ntau dua lossis sib npaug li 30,000 Teev |
|
|
LED Backlight Lub Sijhawm Lub Sijhawm (Hom.) |
Ntau dua lossis sib npaug li 30,000 Teev |
|
|
Kev siv fais fab |
Max. 120 W |
|
|
Mount Interface |
1.100 x 200 mm |
|
|
|
2. Mount bracket, kab rov tav lossis ntsug mount |
|
|
OSD Control |
Khawm |
AUTO, +, POWER, -, MENU |
|
|
Muaj nuj nqi |
Brightness, Contrast Ratio, Nws pib-kho, Theem, moos, H/V Qhov Chaw, Lus, Muaj nuj nqi, Rov pib dua |
|
LED |
SMD 5050, 60 LEDs / m |
|
|
LED IC / Fais fab |
WS2812, 14.4W / m, 12V |
|
Khoom Specification
Lub kaum sab xis saib ntawm lub cuab yeej yog 89 degree nce, nqis, sab laug thiab sab xis, thiab qhov sib piv sib piv yog siab dua lwm qhov ntau thiab tsawg ntawm LED zaub, ntawm 1300: 1. Lub built-in zaub voltage yog DC24V, sab nraud input voltage yog AC100-240V, thiab HDMI/DP video input interface yuav muab tau.
Lub neej ua haujlwm ntawm lub cuab yeej thiab lub teeb nraub qaum yog ntev li 30, 000 teev. Thaum khiav, lub zog noj ntawm cov zaub yog 120W. Txhawb 100 x 200mm installation interface. Nruab nrog tsib OSD tswj nyees khawm: AUTO, +, POWER, -, MENU.
Khoom Feature
Cov cuab yeej muaj cov yam ntxwv hauv qab no:
-
Kev koom ua ke nrog PCAP kov vaj huam sib luag rau qhov kawg ntawm cov duab zoo;
-
Yav tom ntej tiam panels phased-nyob rau hauv tsis muaj kev hloov sab nraud;
-
Lub vaj huam sib luag zoo nrog lub siab ci, qhov sib piv thiab qhov pom dav;
-
LED Halo Effects nyob ib ncig ntawm ntug ntawm tus ncej.
Tuam txhab Profile
Shenzhen rCloud Technology Co., Ltd. (rCloud)
ib-stop daws
pab neeg tshaj lij
siab zoo
Ntawv pov thawj
Packing thiab Shipping
FAQ
PCAP zaub yog dab tsi?
Projective Capacitive touchscreen(P-CAP, Pro-Cap los yog PCAP kov cov ntxaij vab tshaus) sensors ua haujlwm los ntawm kev tswj hwm tus nqi hluav taws xob thoob plaws lub sensor uas txuas mus rau qhov chaw tiv tauj, qhov kev hloov pauv ntawm cov nqi hluav taws xob los ntawm qhov sib thooj ntawm lwm lub cev capacitive (xws li kov stylus , ntiv tes thiab lwm yam)
Qhov txiaj ntsig ntawm PCAP yog dab tsi?
PCAPmuab kev pom dav dav ntawm kev sib txuas hauv network, uas yog qhov tseem ceeb rau kev saib xyuas thiab kev tswj xyuas kom zoo. Qhov kev pom no pab kom nkag siab txog tus cwj pwm hauv network thiab kev ua haujlwm zoo dua.
Lub cuab yeej loj npaum li cas?
Cov cuab yeej yog 43-inch TFT LCD zaub nrog cov zaub loj ntawm 1031.2 x 639.4 x 68.2mm.
